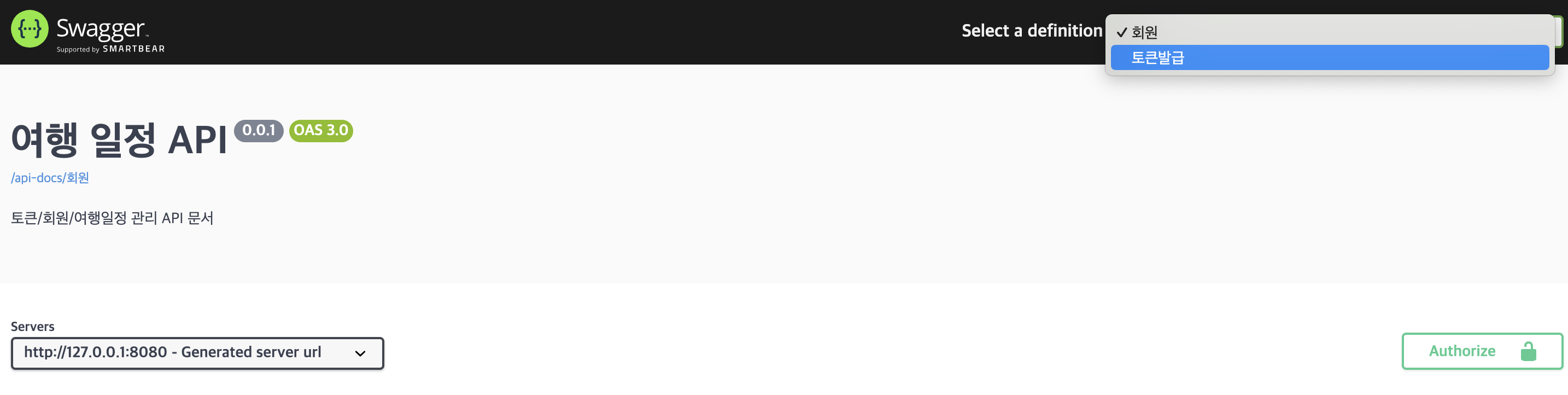

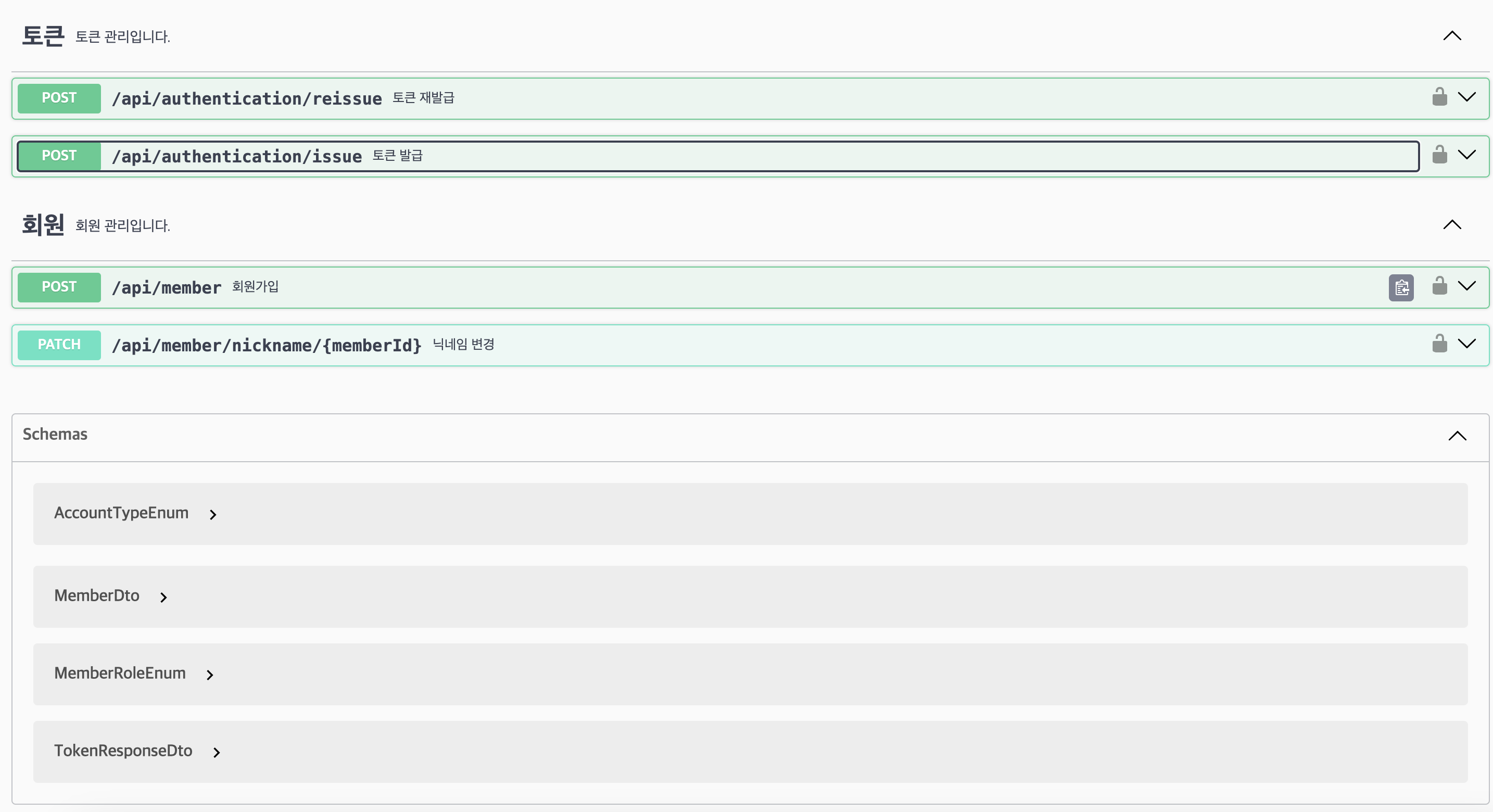

대용량 트래픽 경험해보기(2/14) - 회원/인증 테스트 코드 작성(TDD, Mockito) & API 자동화 문서(Swagger)

개발 전 시행해야할 부분으로 회원 및 토큰 발급에 대해서 테스트에 필요한 작업들을 TDD 기반으로 진행했으며, 동작에 대해서는 Mockito 프레임워크를 통해 테스트를 진행했다.

기능 구분	테스트 구분	세부 테스트 구분
1. 회원가입 및 조회	1.1 회원 추가	- 이메일 중복 - 회원 가입 실패 - 회원 가입 성공
	1.2 회원 조회	- 회원 조회 실패 - 회원 조회 성공
1. 회원가입 및 조회	1.1 회원 추가	- 닉네임 중복 - 닉네임 변경 실패 - 닉네임 변경 성공

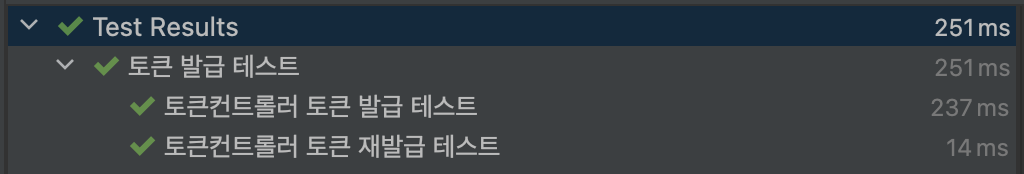

2. 토큰 발급	2.1 토큰 발급 및 재발급 테스트	- 토큰 정상 발급 테스트 - 토큰 만료 및 유효성 테스트 - 토큰 재발급 테스트

슬라이스 테스트 - 회원

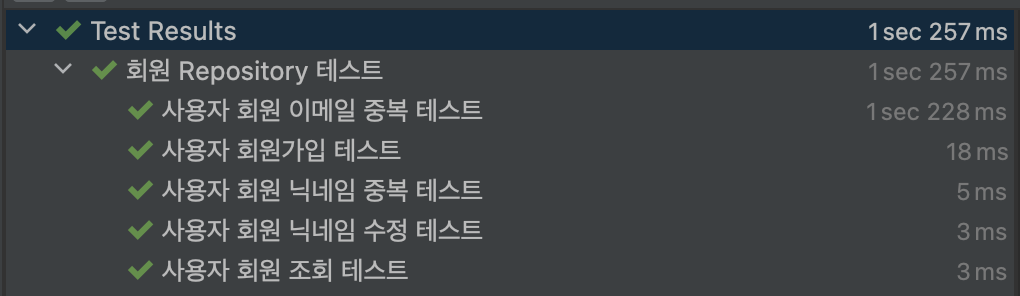

회원 Repository 테스트

@DisplayName("회원 Repository 테스트")
@ExtendWith(MockitoExtension.class)
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class UserRepositoryMockTests {

  @Mock
  MemberRepository memberRepository;

  @Test
  @Order(1)
  @DisplayName("사용자 회원 이메일 중복 테스트")
  public void 사용자_회원_이메일_중복_테스트(){

    //given
    String duplicatedEmail = "test1@gmail.com";
    when(memberRepository.getDuplicatedEmailId(any(String.class))).thenReturn(2L);

    //when
    Long result = memberRepository.getDuplicatedEmailId(duplicatedEmail);

    //then
    assertTrue(result > 0);
  }

  @Test
  @Order(2)
  @DisplayName("사용자 회원가입 테스트")
  public void 사용자_회원가입_테스트(){

    //given
    Member member = new Member(
        1L, "test1@gmail.com", "테스트이름1", "테스트닉네임1", "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.of("USER").getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    Member savedMember = new Member(
        1L, "test1@gmail.com", "테스트이름1", "테스트닉네임1", "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.of("USER").getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    when(memberRepository.save(any(Member.class))).thenReturn(savedMember);

    //when
    Member result = memberRepository.save(member);

    //then
    assertEquals(1L, result.getMemberId());
    assertEquals("test1@gmail.com", result.getMemberEmail());
    assertEquals("테스트이름1", result.getMemberName());
    assertEquals("테스트닉네임1", result.getNickName());
    assertEquals("010-0000-0000", result.getPhoneNumber());
    assertEquals(32, result.getAge());
    assertEquals(LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), result.getBirthday());
    assertEquals('M', result.getGender());
    assertEquals(0, result.getDomancy());
    assertEquals(MemberRoleEnum.USER.getRole(), result.getMemberRole());
    assertEquals(AccountTypeEnum.GOOGLE.getType(), result.getAccountType());
  }

  @Test
  @Order(3)
  @DisplayName("사용자 회원 닉네임 중복 테스트")
  public void 사용자_회원_닉네임_중복_테스트(){
    //given
    when(memberRepository.getDuplicatedNickNameId(any(Long.class), any(String.class))).thenReturn(2L);

    //when
    Long result = memberRepository.getDuplicatedNickNameId(1L, "테스트닉네임변경1");

    //then
    assertTrue(result > 0);
  }

  @Test
  @Order(4)
  @DisplayName("사용자 회원 닉네임 수정 테스트")
  public void 사용자_회원_닉네임_수정_테스트(){

    //given
    when(memberRepository.modifyNickName(any(Long.class), any(String.class), any(Long.class))).thenReturn(1L);

    //when
    long result = memberRepository.modifyNickName(1L, "테스트닉네임변경1", 1L);

    //then
    assertTrue(result > 0);
  }

  @Test
  @Order(5)
  @DisplayName("사용자 회원 조회 테스트")
  public void 사용자_회원_조회_테스트(){
    //given
    Long memberId = 1L;

    Member findMember = new Member(
        1L, "test1@gmail.com", "테스트이름1", "테스트닉네임1", "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.of("USER").getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );
    when(memberRepository.findById(any(Long.class))).thenReturn(Optional.of(findMember));

    //when
    Member result = memberRepository.findById(memberId).get();

    //then
    assertEquals(1L, result.getMemberId());
    assertEquals("test1@gmail.com", result.getMemberEmail());
    assertEquals("테스트이름1", result.getMemberName());
    assertEquals("테스트닉네임1", result.getNickName());
    assertEquals("010-0000-0000", result.getPhoneNumber());
    assertEquals(32, result.getAge());
    assertEquals(LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), result.getBirthday());
    assertEquals('M', result.getGender());
    assertEquals(0, result.getDomancy());
    assertEquals(MemberRoleEnum.USER.getRole(), result.getMemberRole());
    assertEquals(AccountTypeEnum.GOOGLE.getType(), result.getAccountType());
  }
}

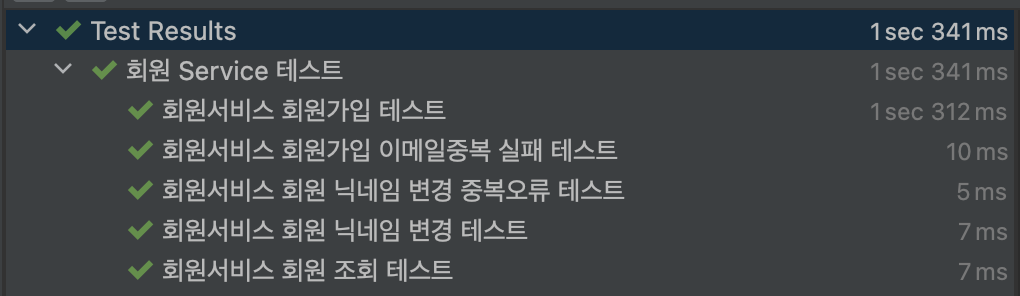

회원 Service 테스트

@DisplayName("회원 Service 테스트")
@ExtendWith(MockitoExtension.class)
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class UserServiceMockTests {

  @Mock
  MemberRepository memberRepository;

  @InjectMocks
  MemberService memberService;

  @Test
  @Order(1)
  @DisplayName("회원서비스 회원가입 테스트")
  public void 회원서비스_회원가입_테스트(){
    //given
    MemberDto memberDto = new MemberDto(
        1L,"test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    Member savedMember = new Member(
        1L, "test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );
    savedMember.setMemberId(1L);

    when(memberRepository.getDuplicatedEmailId(any(String.class))).thenReturn(0L);
    when(memberRepository.save(any(Member.class))).thenReturn(savedMember);

    //when
    Long result = memberService.createMember(memberDto);

    //then
    assertEquals(1L, result);
    verify(memberRepository, times(1)).getDuplicatedEmailId(any(String.class));
    verify(memberRepository, times(1)).save(any(Member.class));
  }

  @Test
  @Order(2)
  @DisplayName("회원서비스 회원가입 이메일중복 실패 테스트")
  public void 회원서비스_회원가입_이메일중복_실패_테스트(){
    //given
    MemberDto memberDto = new MemberDto(
        1L,"test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    Member savedMember = new Member(
        1L, "test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );
    savedMember.setMemberId(1L);

    when(memberRepository.getDuplicatedEmailId(any(String.class))).thenThrow(CommonException.class);

    //when
    assertThrows(CommonException.class, () -> {
        Long result = memberService.createMember(memberDto);
      }
    );

    //then
    verify(memberRepository, times(1)).getDuplicatedEmailId(any(String.class));
  }

  @Test
  @Order(3)
  @DisplayName("회원서비스 회원 닉네임 변경 중복오류 테스트")
  public void 회원서비스_회원_닉네임_변경_중복오류_테스트(){
    //given
    Long memberId = 1L;
    String nickName = "테스트닉네임변경1";

    Member savedMember = new Member(
        1L, "test1@gmail.com", "테스트이름1", "테스트닉네임1", "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );
    savedMember.setMemberId(1L);

    when(memberRepository.getDuplicatedNickNameId(any(Long.class), any(String.class))).thenThrow(CommonException.class);

    //when
    assertThrows(CommonException.class, () -> {
        memberService.modifyNickName(memberId, nickName);
      }
    );

    //then
    verify(memberRepository, times(1)).getDuplicatedNickNameId(any(Long.class), any(String.class));
  }

  @Test
  @Order(4)
  @DisplayName("회원서비스 회원 닉네임 변경 테스트")
  public void 회원서비스_회원_닉네임_변경_테스트(){
    //given
    Long memberId = 1L;
    String nickName = "테스트닉네임변경1";

    Member savedMember = new Member(
        1L, "test1@gmail.com", "테스트이름1", "테스트닉네임1", "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );
    savedMember.setMemberId(1L);

    when(memberRepository.getDuplicatedNickNameId(any(Long.class), any(String.class))).thenReturn(0L);
    when(memberRepository.modifyNickName(any(Long.class), any(String.class))).thenReturn(1L);

    //when
    memberService.modifyNickName(memberId, nickName);

    //then
    verify(memberRepository, times(1)).getDuplicatedNickNameId(any(Long.class), any(String.class));
    verify(memberRepository, times(1)).modifyNickName(any(Long.class), any(String.class));
  }

}

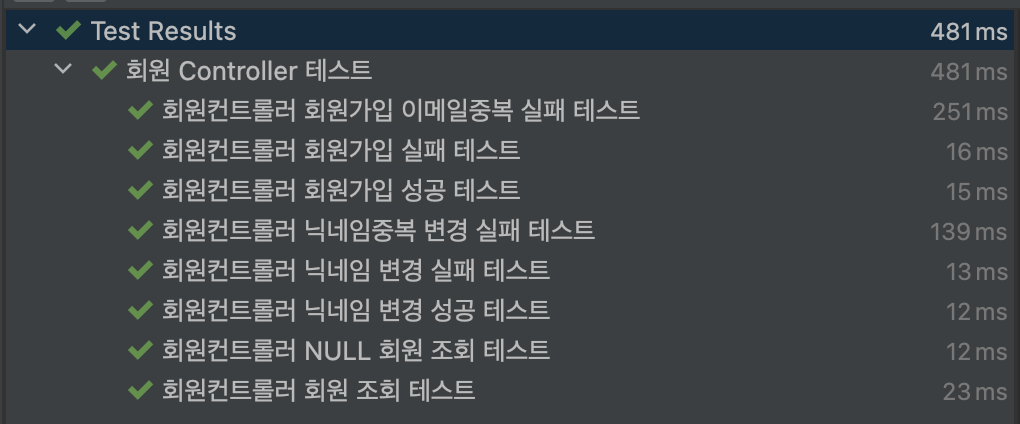

회원 Controller 테스트

@DisplayName("회원 Controller 테스트")
@SpringBootTest
@ActiveProfiles("local")
@AutoConfigureMockMvc
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class UserControllerMockTests {

  @Autowired
  MockMvc mockMvc;

  @MockBean
  MemberService memberService;

  @Autowired
  ObjectMapper objectMapper;

  @Test
  @Order(1)
  @DisplayName("회원컨트롤러 회원가입 이메일중복 실패 테스트")
  public void 회원컨트롤러_회원가입_이메일중복_실패_테스트() throws Exception {
    //given
    MemberDto memberDto = new MemberDto(
        null,"test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    CommonException commonException = new CommonException(ResponseCode.MEMBER_EXIST);
    when(memberService.createMember(any(MemberDto.class))).thenThrow(commonException);

    //when
    ResultActions actions = mockMvc.perform(
        post("/api/member")
            .accept(MediaType.APPLICATION_JSON)
            .contentType(MediaType.APPLICATION_JSON)
            .content(objectMapper.writeValueAsString(memberDto))
    );

    //then
    actions
        .andExpect(status().isConflict());
  }

  @Test
  @Order(2)
  @DisplayName("회원컨트롤러 회원가입 실패 테스트")
  public void 회원컨트롤러_회원가입_실패_테스트() throws Exception {
    //given
    MemberDto memberDto = new MemberDto(
        null,"test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    when(memberService.createMember(any(MemberDto.class))).thenReturn(0L);

    //when
    ResultActions actions = mockMvc.perform(
        post("/api/member")
            .accept(MediaType.APPLICATION_JSON)
            .contentType(MediaType.APPLICATION_JSON)
            .content(objectMapper.writeValueAsString(memberDto))
    );

    //then
    actions
        .andExpect(status().isInternalServerError());
  }

  @Test
  @Order(3)
  @DisplayName("회원컨트롤러 회원가입 성공 테스트")
  public void 회원컨트롤러_회원가입_성공_테스트() throws Exception {
    //given
    MemberDto memberDto = new MemberDto(
        null,"test1@gmail.com", "테스트이름1", null, "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        MemberRoleEnum.USER.getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    when(memberService.createMember(any(MemberDto.class))).thenReturn(1L);

    //when
    ResultActions actions = mockMvc.perform(
        post("/api/member")
            .accept(MediaType.APPLICATION_JSON)
            .contentType(MediaType.APPLICATION_JSON)
            .content(objectMapper.writeValueAsString(memberDto))
    );

    //then
    actions
        .andExpect(status().isCreated());
  }

  @Test
  @Order(4)
  @DisplayName("회원컨트롤러 닉네임중복 변경 실패 테스트")
  public void 회원컨트롤러_닉네임중복_변경_실패_테스트() throws Exception {
    //given
    Long memberId = 1L;
    String nickName = "테스트닉네임1";
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";

    CommonException commonException = new CommonException(ResponseCode.MEMBER_NICKNAME_DUPLICATED);
    when(memberService.modifyNickName(any(Long.class), any(String.class), any(String.class))).thenThrow(commonException);

    //when
    ResultActions resultActions = mockMvc.perform(
        patch("/api/member/nickname/"+memberId)
            .accept(MediaType.APPLICATION_JSON)
            .header("Authorization", accessToken)
            .contentType(MediaType.APPLICATION_JSON)
            .content(nickName)
    );

    //then
    resultActions
        .andExpect(status().isConflict());
  }

  @Test
  @Order(5)
  @DisplayName("회원컨트롤러 닉네임 변경 실패 테스트")
  public void 회원컨트롤러_닉네임_변경_실패_테스트() throws Exception {
    //given
    Long memberId = 1L;
    String nickName = "테스트닉네임1";
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";

    when(memberService.modifyNickName(any(Long.class), any(String.class), any(String.class))).thenReturn(0L);

    //when
    ResultActions resultActions = mockMvc.perform(
        patch("/api/member/nickname/"+memberId)
            .accept(MediaType.APPLICATION_JSON)
            .header("Authorization", accessToken)
            .contentType(MediaType.APPLICATION_JSON)
            .content(nickName)
    );

    //then
    resultActions
        .andExpect(status().isInternalServerError());
  }

  @Test
  @Order(6)
  @DisplayName("회원컨트롤러 닉네임 변경 성공 테스트")
  public void 회원컨트롤러_닉네임_변경_성공_테스트() throws Exception {
    //given
    Long memberId = 1L;
    String nickName = "테스트닉네임1";
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";
    when(memberService.modifyNickName(any(Long.class), any(String.class), any(String.class))).thenReturn(1L);

    //when
    ResultActions resultActions = mockMvc.perform(
        patch("/api/member/nickname/"+memberId)
            .accept(MediaType.APPLICATION_JSON)
            .header("Authorization", accessToken)
            .contentType(MediaType.APPLICATION_JSON)
            .content(nickName)
    );

    //then
    resultActions
        .andExpect(status().isNoContent());
  }

  @Test
  @Order(7)
  @DisplayName("회원컨트롤러 NULL 회원 조회 테스트")
  public void 회원컨트롤러_NULL_회원_조회_테스트() throws Exception {
    //given
    Long memberId = 1L;
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";

    CommonException commonException = new CommonException(ResponseCode.MEMBER_NOT_FOUND);
    when(memberService.findMember(any(Long.class))).thenThrow(commonException);

    //when
    ResultActions resultActions = mockMvc.perform(
        get("/api/member/"+memberId)
            .accept(MediaType.APPLICATION_JSON)
            .header("Authorization", accessToken)
            .contentType(MediaType.APPLICATION_JSON)
    );

    //then
    resultActions
        .andExpect(status().isNotFound());
  }

  @Test
  @Order(8)
  @DisplayName("회원컨트롤러 회원 조회 테스트")
  public void 회원컨트롤러_회원_조회_테스트() throws Exception {
    //given
    Long memberId = 1L;
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";

    MemberResponseDto responseDto = new MemberResponseDto(
        1L, "test1@gmail.com", "테스트이름1", "테스트닉네임1", "010-0000-0000",
        32, LocalDate.parse("1991-08-09", DateTimeFormatter.ISO_DATE), 'M',
        0, MemberRoleEnum.of("USER").getRole(), AccountTypeEnum.of("GOOGLE").getType()
    );

    when(memberService.findMember(any(Long.class))).thenReturn(responseDto);

    //when
    ResultActions resultActions = mockMvc.perform(
        get("/api/member/"+memberId)
            .accept(MediaType.APPLICATION_JSON)
            .header("Authorization", accessToken)
            .contentType(MediaType.APPLICATION_JSON)
    );

    //then
    resultActions
        .andExpect(status().isFound());
  }
}

슬라이스 테스트 - 토큰

토큰 발급 Provider 테스트

@DisplayName("토큰 인증 Provider 테스트")
@SpringBootTest
@ActiveProfiles("local")
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class JwtAuthenticationTests {

  @Autowired
  private JwtTokenProvider jwtTokenProvider;

  @Test
  @Order(1)
  @DisplayName("JWT 토큰 발급 테스트")
  public void JWT_토큰_발급_테스트(){
    //given
    String memberEmail = "test1@gmail.com";
    long testTime = new Date().getTime();

    //when
    TokenResponseDto result = jwtTokenProvider.createToken(memberEmail, MemberRoleEnum.USER.getRole());

    //then
    assertTrue(result.getAccessToken() != null && result.getAccessToken().length() > 0);
    assertTrue(result.getAccessTokenExpiresIn() >= testTime);
    assertTrue(result.getRefreshToken() != null && result.getRefreshToken().length() > 0);
    assertTrue(result.getRefreshTokenExpiresIn() >= testTime);
  }

  @Test
  @Order(2)
  @DisplayName("JWT 토큰 Claims 데이터 테스트")
  public void JWT_토큰_Claims_데이터_테스트(){
    //given
    String accessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY2MjM4MTksIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2NjI1NjE5fQ.-Fy5QrC4ZCbU-swm0kVJGCLIugYwEdXy2-zy0KEtuNInVQRDx7IsA0WGBZMC0W2eYJkt95jMoQXQdI6bik-F9w";

    //when
    Claims claims = jwtTokenProvider.getClaims(accessToken);

    //then
    assertEquals("test1@gmail.com", claims.getSubject());
    assertEquals(MemberRoleEnum.USER.getRole(), claims.get(JwtHeader.AUTHORITY_TYPE_HEADER.getValue(), String.class));
  }

  @Test
  @Order(3)
  @DisplayName("JWT 토큰 이메일 추출 테스트")
  public void JWT_토큰_이메일_추출_테스트(){
    //given
    String accessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY2MjM4MTksIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2NjI1NjE5fQ.-Fy5QrC4ZCbU-swm0kVJGCLIugYwEdXy2-zy0KEtuNInVQRDx7IsA0WGBZMC0W2eYJkt95jMoQXQdI6bik-F9w";

    //when
    String memberEmail = jwtTokenProvider.getSubject(accessToken);

    //then
    assertEquals("test1@gmail.com", memberEmail);
  }

  @Test
  @Order(4)
  @DisplayName("JWT 정상 토큰 유효성 테스트")
  public void JWT_정상_토큰_유효성_테스트(){
    //given
    String accessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY3OTI4MDUsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2Nzk0NjA1fQ.c3kJ_n9E6MnS9vhwQ500r0s7lGozx1egeDG5FoAHAkhH2-zivpqH0JpBPonHfi_HcNYMLlPS8dc3Q23rfuMCPA";

    //when
    boolean tokenValid = jwtTokenProvider.validateToken(accessToken);

    //then
    assertTrue(tokenValid);
  }

  @Test
  @Order(5)
  @DisplayName("JWT 만료 토큰 유효성 테스트")
  public void JWT_만료_토큰_유효성_테스트(){
    //given
    String expiredAccessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY2MjI1NzgsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2NjIyNTgwfQ.2zRSxfw79-oR4I2iwiYvgoPEHP0mGK6DS0Fh3YLC3YnHkqDR5Pxdz5aSfOvbolhPFzE-UwrI70aWa0Tu6--Mbg";

    //when
    boolean expiredTokenValid = jwtTokenProvider.validateToken(expiredAccessToken);

    //then
    assertFalse(expiredTokenValid);
  }

  @Test
  @Order(6)
  @DisplayName("JWT 비정상 토큰 테스트")
  public void JWT_비정상_토큰_테스트(){
    //given
    String overAccessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY2MjM4MTksIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2NjI1NjE5fQ.-Fy5QrC4ZCbU-swm0kVJGCLIugYwEdXy2-zy0KEtuNInVQRDx7IsA0WGBZMC0W2eYJkt95jMoQXQdI6bik-F9w";
    overAccessToken += "abcdefg"; //정상 토큰 위에 이상 문자 추가

    String nullAccessToken = null; //토큰이 Null

    //when
    boolean overTokenValid = jwtTokenProvider.validateToken(overAccessToken);
    boolean nullTokenValid = jwtTokenProvider.validateToken(nullAccessToken);

    //then
    assertFalse(overTokenValid);
    assertFalse(nullTokenValid);
  }

  @Test
  @Order(7)
  @DisplayName("JWT 엑세스토큰으로 토큰 재발급 IllegalArgumentException 테스트")
  public void JWT_엑세스토큰_토큰_재발급_IllegalArgumentException_테스트(){
    //given
    String accessToken = null;

    //when
    assertThrows(IllegalArgumentException.class, () -> {
      jwtTokenProvider.createToken(accessToken);
    });

    //then
  }

  @Test
  @Order(8)
  @DisplayName("JWT 엑세스토큰으로 토큰 재발급 MalformedJwtException 테스트")
  public void JWT_엑세스토큰_토큰_재발급_MalformedJwtException_테스트(){
    //given
    String accessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY2MjM4MTksIkF1dGhvcml6YXRpb24iOi";

    //when
    assertThrows(MalformedJwtException.class, () -> {
      jwtTokenProvider.createToken(accessToken);
    });

    //then
  }

  @Test
  @Order(9)
  @DisplayName("JWT 엑세스토큰으로 토큰 재발급 테스트")
  public void JWT_엑세스토큰_토큰_재발급_테스트(){
    //given
    String accessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY2MjM4MTksIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2NjI1NjE5fQ.-Fy5QrC4ZCbU-swm0kVJGCLIugYwEdXy2-zy0KEtuNInVQRDx7IsA0WGBZMC0W2eYJkt95jMoQXQdI6bik-F9w";
    long testTime = new Date().getTime();

    //when
    TokenResponseDto result = jwtTokenProvider.createToken(accessToken);

    //then
    assertTrue(result.getAccessToken() != null && result.getAccessToken().length() > 0);
    assertTrue(result.getAccessTokenExpiresIn() >= testTime);
    assertTrue(result.getRefreshToken() != null && result.getRefreshToken().length() > 0);
    assertTrue(result.getRefreshTokenExpiresIn() >= testTime);
  }
}

토큰 발급 Service 테스트

@DisplayName("토큰 인증 Service 테스트")
@ExtendWith(MockitoExtension.class)
@TestMethodOrder(MethodOrderer.OrderAnnotation.class)
public class JwtAuthenticationServiceMockTests {

  @InjectMocks
  AuthenticationService authenticationService;

  @Mock
  JwtTokenProvider tokenProvider;

  @Test
  @Order(1)
  @DisplayName("인증서비스 이메일 및 권한으로 토큰 발급 테스트")
  public void 인증서비스_이메일_권한_토큰_발급_테스트(){
    //given
    String memberEmail = "test1@gmail.com";
    String memberRole = MemberRoleEnum.USER.getRole();
    long testTime = new Date().getTime();

    TokenResponseDto tokenResponseDto = new TokenResponseDto(
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA",
        1716882904479L,
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ",
        1719467704479L

    );

    Collection<? extends GrantedAuthority> authorities =
        Arrays.stream(MemberRoleEnum.USER.getRole().split(","))
            .map(SimpleGrantedAuthority::new)
            .collect(Collectors.toList());

    Authentication authentication = new UsernamePasswordAuthenticationToken(
        "test1@gmail.com", "", authorities
    );

    when(tokenProvider.createToken(any(String.class), any(String.class))).thenReturn(tokenResponseDto);
    when(tokenProvider.getAuthentication(any(String.class))).thenReturn(authentication);

    //when
    TokenResponseDto result = authenticationService.issue(memberEmail, memberRole);

    //then
    assertTrue(result.getAccessToken() != null && result.getAccessToken().length() > 0);
    assertTrue(result.getAccessTokenExpiresIn() >= testTime);
    assertTrue(result.getRefreshToken() != null && result.getRefreshToken().length() > 0);
    assertTrue(result.getRefreshTokenExpiresIn() >= testTime);

    verify(tokenProvider, times(1)).createToken(any(String.class), any(String.class));
    verify(tokenProvider, times(1)).getAuthentication(any(String.class));
  }

  @Test
  @Order(2)
  @DisplayName("인증서비스 토큰 재발급 테스트")
  public void 인증서비스_토큰_재발급_테스트(){
    //given
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";
    String refreshToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ";

    long testTime = new Date().getTime();

    Collection<? extends GrantedAuthority> authorities =
        Arrays.stream(MemberRoleEnum.USER.getRole().split(","))
            .map(SimpleGrantedAuthority::new)
            .collect(Collectors.toList());

    Authentication authentication = new UsernamePasswordAuthenticationToken(
        "test1@gmail.com", "", authorities
    );

    String resolveAccessToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";
    String resolveRefreshToken = "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ";

    TokenResponseDto tokenResponseDto = new TokenResponseDto(
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA",
        1716882904479L,
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ",
        1719467704479L
    );

    when(tokenProvider.resolveToken(any(String.class))).thenReturn(resolveAccessToken);
    when(tokenProvider.getAuthentication(any(String.class))).thenReturn(authentication);
    when(tokenProvider.createToken(any(String.class))).thenReturn(tokenResponseDto);

    //when
    TokenResponseDto result = authenticationService.reIssue(accessToken, refreshToken);

    //then
    assertTrue(result.getAccessToken() != null && result.getAccessToken().length() > 0);
    assertTrue(result.getAccessTokenExpiresIn() >= testTime);
    assertTrue(result.getRefreshToken() != null && result.getRefreshToken().length() > 0);
    assertTrue(result.getRefreshTokenExpiresIn() >= testTime);

    verify(tokenProvider, times(1)).resolveToken(any(String.class));
    verify(tokenProvider, times(1)).getAuthentication(any(String.class));
    verify(tokenProvider, times(1)).createToken(any(String.class));
  }
}

토큰 발급 Controller 테스트

@DisplayName("토큰 발급 Controller 테스트")
@SpringBootTest
@ActiveProfiles("local")
@AutoConfigureMockMvc
public class JwtAuthenticationControllerMockTests {

  @Autowired
  MockMvc mockMvc;

  @MockBean
  AuthenticationService authenticationService;

  @Autowired
  ObjectMapper objectMapper;

  @Test
  @Order(1)
  @DisplayName("토큰컨트롤러 토큰 발급  테스트")
  public void 토큰컨트롤러_토큰_발급_테스트() throws Exception {
    //given
    TokenResponseDto tokenResponseDto = new TokenResponseDto(
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA",
        1716882904479L,
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ",
        1719467704479L
    );

    when(authenticationService.issue(any(String.class), any(String.class))).thenReturn(tokenResponseDto);

    //when
    ResultActions actions = mockMvc.perform(
        post("/api/authentication/issue")
            .accept(MediaType.APPLICATION_JSON)
            .contentType(MediaType.APPLICATION_JSON)
            .content(objectMapper.writeValueAsString(tokenResponseDto))
    );

    //then
    actions
        .andExpect(status().isCreated());

  }

  @Test
  @Order(2)
  @DisplayName("토큰컨트롤러 토큰 재발급 테스트")
  public void 토큰컨트롤러_토큰_재발급_테스트() throws Exception {
    //given
    String accessToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA";
    String refreshToken = "Bearer eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ";

    TokenResponseDto tokenResponseDto = new TokenResponseDto(
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE2ODgyOTA0fQ.c_7tnSNqP3pY_RLZAox_DvI3h1h8h5fBXPhpaZzJihGtNTbH_TViYBspU9bT5jGXqiXqKKIIAz7usDXUgyfdnA",
        1716882904479L,
        "eyJhbGciOiJIUzUxMiJ9.eyJzdWIiOiJ0ZXN0MUBnbWFpbC5jb20iLCJpYXQiOjE3MTY4NzU3MDQsIkF1dGhvcml6YXRpb24iOiJVU0VSIiwiZXhwIjoxNzE5NDY3NzA0fQ.-TQbgkPeAOjoKzyR80KRfuf2l08QVcUc413UGfgQLuVUUfBgVXXXVnl-gfJf0BwHiGooAuxp7eHAfnr2r0SFMQ",
        1719467704479L
    );

    when(authenticationService.reIssue(any(String.class), any(String.class))).thenReturn(tokenResponseDto);

    //when
    ResultActions actions = mockMvc.perform(
        post("/api/authentication/reissue")
            .accept(MediaType.APPLICATION_JSON)
            .header("access-token", accessToken)
            .header("refresh-token", refreshToken)
            .contentType(MediaType.APPLICATION_JSON)
            .content(objectMapper.writeValueAsString(tokenResponseDto))
    );

    //then
    actions
        .andExpect(status().isCreated());
  }
}

자동화 문서 도구 - Swagger (Spring Doc)
